National Facility for High-resolution Cathodoluminescence

Loughborough University awarded £2.6m to open National Facility

Funded by the Engineering and Physical Sciences Research Council, the National Facility for High Resolution Cathodoluminescence (CL) Analysis will be the first of its kind globally and open to researchers from around the world.

The facility will aid with the development of solar cell technologies, LEDs, quantum dots and other devices that operate on both light and electrical currents, known as ‘optoelectronics’.

Professor Mike Walls, of the Centre for Renewable Energy Systems Technology (CREST), and Loughborough Materials Characterisation Centre (LMCC)’s Dr Mark Jepson and Dr Zhaoxia Zhou led the bid for the facility.

SEM Cathodoluminescence (CL) detector installed on an existing Xenon Helios G4 P-FIB

Cathodoluminescence (CL) detector

  • A Gatan Monarc Pro CL system with a cooled PMT (185-980 nm) CCD (185 - 1100 nm) with an additional (900 – 1900 nm) InGaAs diode.
  • Installation expected November 2023 – open for use January 2024

Acquisition capabilities include

  • Wavelength-filtered and unfiltered CL mapping, wavelength-filtered and -resolved spectroscopy, plus spectrum imaging (hyperspectral imaging)
  • This System will be unique by allow Cross sectioning by pFIB followed by CL analysis
  • The existing Helios G4 pFIB is equipped with, Oxford instruments 170 mm EDS detector and Symmetry 3 EBSD detector

Cryogenic stage on the Xenon Helios G4 P-FIB

  • Cooling samples can often significantly increase CL yield
  • Gatan Cold Stage, Model C1002. Nitrogen cooled stage for SEM (-185 to +200 °C)
  • Stage movement (X,Y full range, t45° R+/-25°)

Cathodoluminescence (CL) microscopy on a dedicated High-Resolution STEM

Talos F200i CFEG STEM / TEM + x2 100mm EDS detectors

  • Cold FEG offering high brightness and resolution
  • Alignments at 60 kV 80 kV 120 kV and 200 kV
  • 2 x Bruker x Flash6 100 EDS detectors
  • Ceta-S Camera, Segmented Panther STEM and 4D STEM capability

Attolight CL system

  • Detectors, PMT 200-650 nm, CCD (200-1060nm), NIR (800-1700 nm) InGaAs
  •  Acquisition capabilities include
  • Wavelength-filtered and unfiltered CL mapping plus spectrum imaging (hyperspectral imaging).
  • Sequential CL and EDS collection (with the same holder)

Holders

  • Singe tilt holder, Melbuid Cryo holder (-155°C) , High-visibility Low-background Double-tilt Holder, MEMS based in-situ heating holder

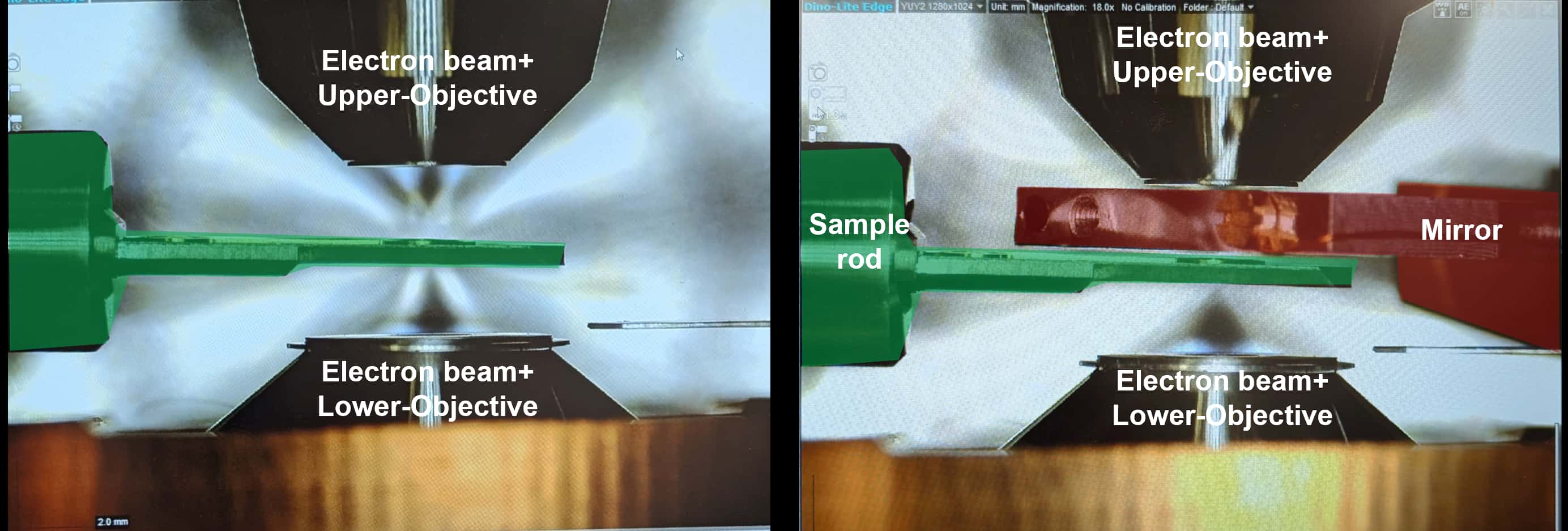

Internal image of microscope setup

The integrated Thermo Fisher Attolight STEM-CL system offers a unique capability: the sequential collection of cathodoluminescence (CL) and energy-dispersive X-ray spectroscopy (EDX) data in a single session—without the need to retract or remount the sample.
This functionality is made possible by a retractable mirror positioned between the sample and the pole piece, enabling seamless switching between imaging modes.

An example of a CL map showing enrichment at grain boundaries

Are you interested in using this facility?

If you are interested in using equipment within the National Facility for High Resolution Cathodoluminesence or would like further information please do not hesitate to get in touch.
